5G Sub-6Ghz SA 223 Mbps DL, 123 Mbps UL; 4G LTE Cat 4 – LTE 195 Mbps DL, 105 Mbps UL

Versión 17 RedCap

2 tarjetas SIM, casos de cambio automático: señal débil, límite de datos, límite de SMS, itinerancia, sin red, red denegada, fallo de conexión de datos, protección de inactividad de SIM

IMSI, ICCID, operador, estado del operador, estado de la conexión de datos, tipo de red, ancho de banda, banda conectada, intensidad de la señal (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, datos enviados/recibidos, LAC, TAC, ID de celda, ARFCN, UARFCN, EARFCN, MCC y MNC

Estado de SMS, configuración de SMS, enviar/leer SMS a través de HTTP POST/GET, CORREO ELECTRÓNICO a SMS, SMS a correo electrónico, SMS a HTTP, SMS a SMS, SMS a SMS, SMS programado, respuesta automática de SMS, SMPP

Admite el envío y la lectura de mensajes de datos de servicio suplementarios no estructurados

Lista de bloqueos/permitidos de operadores (por país u operadores separados)

Posibilidad de utilizar diferentes PDN para múltiples accesos a la red y servicios

Bloqueo de banda, visualización del estado de la banda utilizada

Ofrece la posibilidad de configurar el router para cambiar periódicamente a la tarjeta SIM no utilizada y establecer una conexión de datos para evitar que la tarjeta SIM se bloquee

La gestión del código PIN de la tarjeta SIM permite configurar, cambiar o desactivar el PIN de la tarjeta SIM

APN automático

Conexión directa (puente) entre el ISP móvil y el dispositivo en la LAN

El router asigna su dirección IP WAN móvil a otro dispositivo en la LAN

802.11b/g/n (Wi-Fi 4), punto de acceso (AP), estación (STA)

WPA2-Empresa: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Modos de cifrado automático, separación de clientes, EAP-TLS con certificados PKCS#12, deshabilitar la reconexión automática, Tramas de administración protegidas (PMF) 802.11w

Modo sigiloso SSID y control de acceso basado en la dirección MAC

Hasta 100 conexiones simultáneas

Malla inalámbrica (802.11s), roaming rápido (802.11r), gestión de transición BSS (802.11v), medición de recursos de radio (802.11k)

Lista de permitidos, lista de bloqueo

Una vez escaneado, un usuario ingresará automáticamente a su red sin necesidad de ingresar información de inicio de sesión

Reenviar la página de inicio del punto de acceso Wi-Fi a un dispositivo conectado posterior

1 puerto WAN 10/100 Mbps, cumple con los estándares IEEE 802.3, IEEE 802.3u, 802.3az, admite MDI/MDIX automático

3 puertos LAN, 10/100 Mbps, cumple con los estándares IEEE 802.3, IEEE 802.3u, admite MDI/MDIX automático

Enrutamiento estático, enrutamiento dinámico (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), enrutamiento basado en políticas

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake on Lan (WOL), VXLAN

Ayudantes NAT de protocolo H.323 y SIP-alg, que permiten el enrutamiento adecuado de paquetes VoIP

Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Port forward, traffic rules, custom rules

View all your Firewall statistics, rules, and rule counters

View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Visual representation of your network, showing which devices are connected to which other devices

Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

Supported >25 service providers, others can be configured manually

DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

Balance Internet traffic over multiple WAN connections

Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

Possibility to mount remote file system via SSH protocol

Mirroring network traffic on Ethernet ports for monitoring and analysis

Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64

DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

Port and tag-based VLAN separation

Mobile data limit, customizable period, start time, warning limit, phone number

Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Flexible access control of SSH, Web interface, CLI and Telnet

Let’s Encrypt and SCEP certificate generation methods

Port-based network access control server

Multiple clients and a server can run simultaneously, 27 encryption methods

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE tunnel, GRE tunnel over IPsec support

Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

SSTP client instance support

ZeroTier VPN client support

WireGuard VPN client and server support

Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support.

Router

RS485, TCP

Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device)

Client, Server

TCP

Server, Client

RTU (RS232, RS485), TCP, USB

MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

HTTP(S), MQTT, Azure MQTT, Kinesis

Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature

Allows sending commands and receiving data from MODBUS Server through MQTT broker

TCP Master, DNP3 Outstation

RS232, RS485, TCP, USB

DLMS – standard protocol for utility meter data exchange

Client

RS232, RS485, TCP

Allows to scan meter COSEM objects for automatic detection and configuration

Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

Firmware update from server, automatic notification

SSH (v1, v2)

SMS status, SMS configuration, send/read SMS via HTTP POST/GET

Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off

Receive email message status alerts of various services

OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT Broker, MQTT publisher

SNMP (v1, v2, v3), SNMP Trap, Brute force protection

Management API over HTTP/HTTPS

Teltonika Remote Management System (RMS)

Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

Utility to interact with the AWS cloud platform. Jobs Support: Call the device’s API using AWS Jobs functionality

Mediatek, 580 MHz, MIPS 24KEc

128 MB, DDR2

32 MB, NOR Flash

Update FW from file, check FW on server, configuration profiles, configuration backup

Update FW

Update FW/configuration for multiple devices at once

Update FW without losing current configuration

A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration

RutOS (OpenWrt based Linux OS)

Busybox shell, Lua, C, C++

SDK package with build environment provided

You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

The Package Manager is a service used to install additional software on the device

GPS, GLONASS, BeiDou, Galileo and QZSS

GNSS coordinates via WebUI, SMS, TAVL, RMS

NMEA 0183

NTRIP protocol (Networked Transport of RTCM via Internet Protocol)

Supported server software TAVL, RMS

Configurable multiple geofence zones

DB9 connector, RS232 (with RTS, CTS flow control)

RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate

Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client

USB 2.0

Samba share, USB-to-serial

Possibility to connect external HDD, flash drive, printer, USB-serial adapter

FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

1 x digital dry input (0 – 3 V), 1 x digital galvanically isolated input (0 – 30 V), 1 x analog input (0 – 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 – 5 V detected as logic low, 8 – 30 V detected as logic high)

1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)

Email, RMS, SMS

Allows to set certain I/O conditions to initiate event

Micro SD (internal)

Samba share, Storage Memory Expansion, DLNA

Up to 2 TB

FAT32, NTFS, ext2, ext3, ext4

Idle: < 3 W, Max: < 7 W

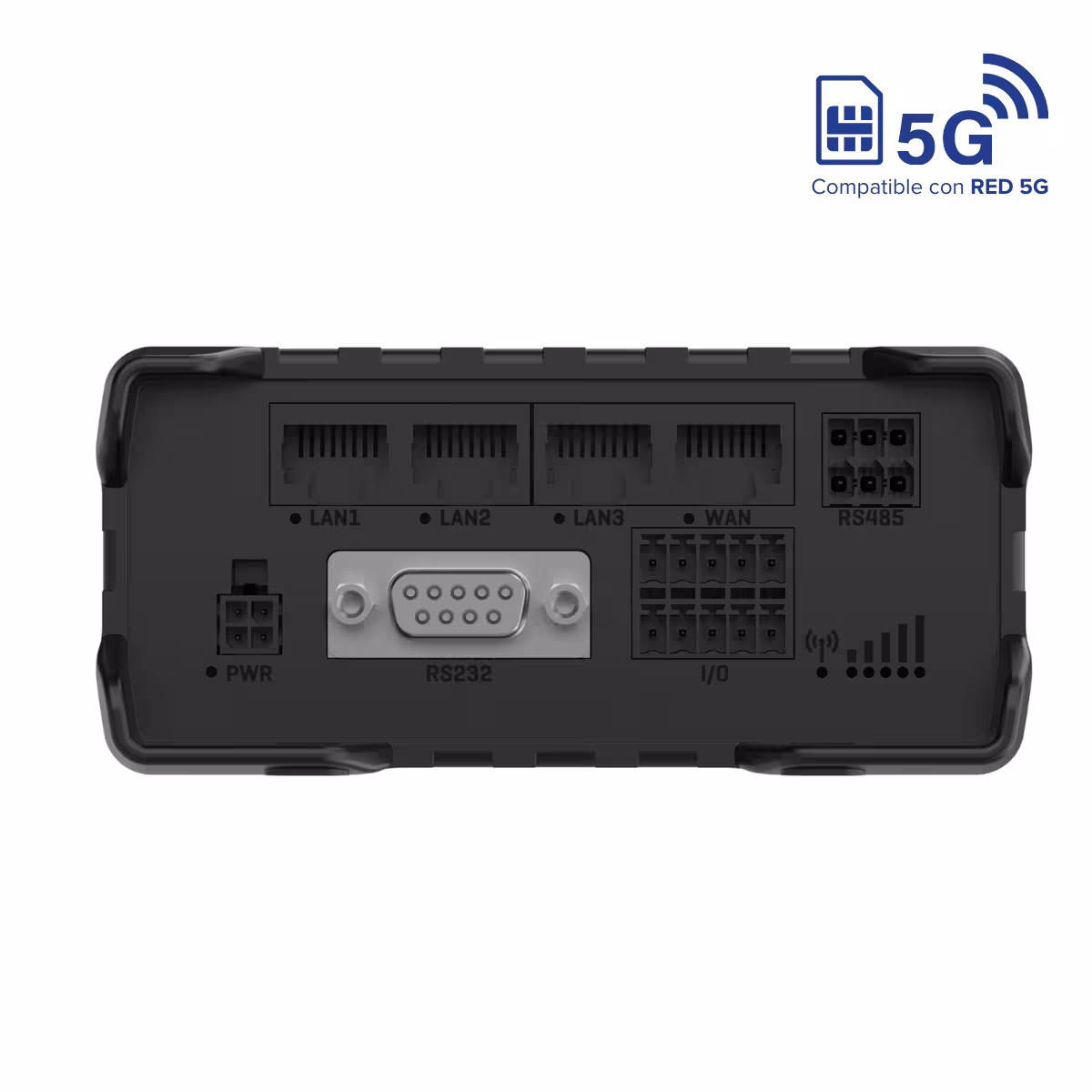

4 x RJ45 ports, 10/100 Mbps

2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector

1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power

2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional – different hardware required; contact your sales manager)

1 x 4-pin power connector

1 x 10-pin industrial socket for inputs/outputs

2 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS

1 x USB A port for external devices

1 x DB9 socket

1 x 6-pin industrial socket

Reboot/User default reset/Factory reset button

Carcasa de aluminio, paneles de plástico

110 x 50 x 100 mm

295 g

Carril DIN, montaje en pared, superficie plana (todos requieren kit adicional)

De -40 °C a 75 °C

Del 10 % al 90 % sin condensación

IP30

RAEE
